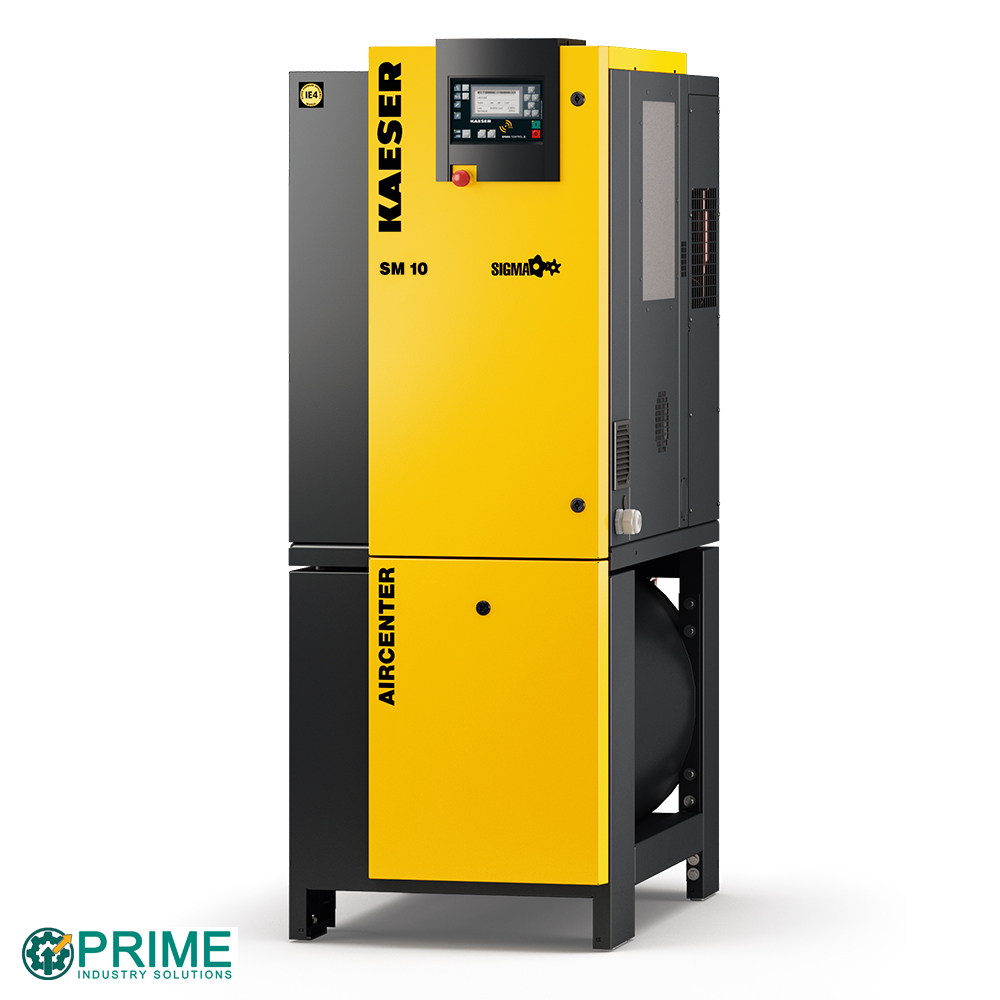

Complete, Integrated Compressed Air Technology for Professional Environments
The KAESER AIRCENTER SM 10 Premium 10HP Integrated Rotary Screw Compressor System from Prime Industry Solutions consolidates every essential air system component into one compact, turnkey package. Featuring a rotary screw compressor, ABT 15 refrigerated dryer, and 71.3 gallon receiver, this workstation delivers dependable, dry compressed air without the need for complex installation or multiple standalone units.
High-Performance Specifications
- Working pressures: 125, 160, or 217 psi
- Flow rates (acfm): 46 at 125 psi, 37 at 160 psi, 19 at 217 psi
- Nominal motor output: 10 HP
- Receiver volume: 71.3 gallons
- Dimensions: 25 in W x 48 in D x 68 in H
- Compressed air connection: 3/4 NPT
- Sound pressure level: 67 dB(A)
- Weight: 970 lbs
Engineered for Clean, Reliable Air
The KAESER SIGMA PROFILE airend requires 10 to 20 percent less energy than traditional rotor designs and provides steady, efficient air output for demanding industrial use. The refrigerated dryer, housed separately for reliability, features an electronically controlled condensate drain and an energy-saving compressor shut-down mode. It uses R-513A refrigerant and automatically aligns with compressor activity when idle.
Ready-to-Run System Design
- Fully automatic operation
- Super-silenced and vibration-damped enclosure
- Powder-coated panels for long-term corrosion resistance
- Rated for ambient temperatures up to 113°F
Premium Electric Motor & Cooling
- German-made IE3 and IE4 Premium Efficiency motors
- IP 54 protection
- Dual-flow fan cooling system
- Honeycomb air intake filter
- Triple-separation cooling fluid system
Electrical System & Intelligent Controls
- IP 54 control cabinet with ventilation
- Automatic star-delta starter
- Overload relays and control transformer

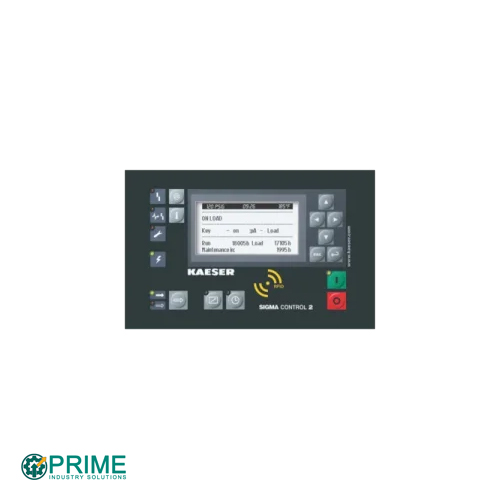

- SIGMA CONTROL 2: multi-language interface, icon-driven navigation, Ethernet connectivity
- Optional communication modules: Profibus DP, Modbus, Profinet, DeviceNet
- SD card slot for logging & updates, RFID reader, internal web server
With quiet operation, exceptional efficiency, and a fully integrated design, the KAESER AIRCENTER SM 10 Premium 10HP Integrated Rotary Screw Compressor System is the perfect solution for facilities that need a compact yet powerful compressed air system built for continuous, professional use.
KAESER AIRCENTER SM 10 Premium 10HP Integrated Rotary Screw Compressor System
Original price was: $14,999.00.$9,999.00Current price is: $9,999.00.
The KAESER AIRCENTER SM 10 Premium 10HP Integrated Rotary Screw Compressor System, available from Prime Industry Solutions, is a complete, ready-to-run compressed air station engineered for exceptional performance, superior efficiency, and ultra-quiet operation.
This all-in-one system integrates a 10 HP rotary screw compressor with SIGMA PROFILE airend technology, a high-efficiency refrigerated dryer, and a 71.3 gallon receiver tank into a compact, space-saving footprint. With operating pressures of 125, 160, or 217 psi and flow rates between 19 and 46 acfm, the SM 10 is ideal for workshops, manufacturing floors, labs, and industrial facilities needing clean, reliable compressed air.
Exceptional durability is built in with a powder-coated steel enclosure, vibration-damped frame, and a whisper-quiet 67 dB(A) sound profile. The advanced SIGMA CONTROL 2 system provides intuitive monitoring, multiple control modes, Ethernet connectivity, and extensive communication options. Designed for plug-and-play operation, the AIRCENTER SM 10 offers unmatched convenience and long-term reliability.
Complete, Integrated Compressed Air Technology for Professional Environments
The KAESER AIRCENTER SM 10 Premium 10HP Integrated Rotary Screw Compressor System from Prime Industry Solutions consolidates every essential air system component into one compact, turnkey package. Featuring a rotary screw compressor, ABT 15 refrigerated dryer, and 71.3 gallon receiver, this workstation delivers dependable, dry compressed air without the need for complex installation or multiple standalone units.
High-Performance Specifications
- Working pressures: 125, 160, or 217 psi
- Flow rates (acfm): 46 at 125 psi, 37 at 160 psi, 19 at 217 psi
- Nominal motor output: 10 HP
- Receiver volume: 71.3 gallons
- Dimensions: 25 in W x 48 in D x 68 in H
- Compressed air connection: 3/4 NPT
- Sound pressure level: 67 dB(A)
- Weight: 970 lbs
Engineered for Clean, Reliable Air
The KAESER SIGMA PROFILE airend requires 10 to 20 percent less energy than traditional rotor designs and provides steady, efficient air output for demanding industrial use. The refrigerated dryer, housed separately for reliability, features an electronically controlled condensate drain and an energy-saving compressor shut-down mode. It uses R-513A refrigerant and automatically aligns with compressor activity when idle.
Ready-to-Run System Design
- Fully automatic operation
- Super-silenced and vibration-damped enclosure
- Powder-coated panels for long-term corrosion resistance
- Rated for ambient temperatures up to 113°F
Premium Electric Motor & Cooling
- German-made IE3 and IE4 Premium Efficiency motors
- IP 54 protection
- Dual-flow fan cooling system
- Honeycomb air intake filter
- Triple-separation cooling fluid system
Electrical System & Intelligent Controls
- IP 54 control cabinet with ventilation
- Automatic star-delta starter
- Overload relays and control transformer
- SIGMA CONTROL 2: multi-language interface, icon-driven navigation, Ethernet connectivity
- Optional communication modules: Profibus DP, Modbus, Profinet, DeviceNet
- SD card slot for logging & updates, RFID reader, internal web server
With quiet operation, exceptional efficiency, and a fully integrated design, the KAESER AIRCENTER SM 10 Premium 10HP Integrated Rotary Screw Compressor System is the perfect solution for facilities that need a compact yet powerful compressed air system built for continuous, professional use.
In stock
- Free shipping on all orders to USA & Canada
- No hassle returns, 30 days return policy
- Custom Colors & Options available upon request
